Glass-lined Storage Tank

Type	L	L	Dimension(mm)								Nozzle(mm)								Weight kg
Type	L	L	D	D1	D2	H1	H2	H3	H4	-H	a	b	c	d	e	f	g	h	Weight kg
ZK-50	50	61.3	400	240	280	520	250	/	/	1080	80	65	65	/	/	/	65	65	150
ZK-100	100	121	500	300	350	660	275	167	700	1245	100	65	65	/	/	2-65	65	65	210
ZK-200	200	240	600	360	420	900	310	193	900	1520	125	65	65	/	/	2-65	65	65	280
ZK-300	300	363	700	420	490	1000	351	178	1000	1661	125	80	65	/	/	2-65	80	65	380
ZK-400	400	469	800	480	560	1000	386	162	1000	1696	150	80	65	/	/	2-65	80	80	480
ZK-500	500	590	800	480	560	1240	386	202	1200	1936	150	80	65	/	/	2-65	80	80	530
ZK-800	800	884	1000	600	700	1210	436	194	1200	1956	150	80	80	80	/	2-65	80	80	765
ZK-1000	1000	1112	1000	600	700	1500	436	184	1500	2248	150	80	80	80	/	2-65	80	80	860
ZK-1250	1250	1391	1200	720	840	1330	486	188	1300	2128	200	80	80	80	/	2-65	80	80	1020
ZK-1500	1500	1674	1200	720	840	1580	486	238	1500	2378	200	100	80	80	/	2-65	100	80	1120
ZK-2000	2000	2219	1300	780	910	1780	511	224	1700	2603	400×300	100	80	80	/	2-65	100	80	1470
ZK-3000	3000	3336	1450	870	1015	2140	559	261	2000	3011	400×300	125	100	100	/	2-65	125	100	1970
ZK-4000	4000	4450	1600	960	1120	2340	606	210	1300	3258	400×300	125	100	100	2-65	2-65	125	100	2560
ZK-5000	5000	5560	1600	960	1120	2890	606	193	1600	3808	400×300	125	100	100	2-65	2-65	125	100	2910

Type	L	L	Dimension(mm)							Nozzle(mm)								Weight kg
Type	L	L	D	D1	D2	H1	H2	H3	-H	a	b	c	d	e	f	g	h	Weight kg
ZF-3000	3000	3337	1450	600	1015	310	2260	1400	2933	65	125	65	65	2-65	2-65	125	2-65	1700
ZF-4000	4000	4441	1600	600	1120	310	2470	1500	3182	65	125	65	65	2-65	2-65	125	2-65	2070
ZF-5000	5000	5550	1600	600	1120	310	3020	1800	3732	65	125	65	65	2-65	2-65	125	2-65	2100
ZF-6300	6300	7024	1750	600	1225	310	3210	1900	3924	65	125	65	65	2-65	2-65	125	2-65	3000
ZF-8000	8000	8910	1900	600	1330	310	3460	2000	4174	65	125	65	65	2-65	2-65	125	2-65	3580
ZF-10000	10000	11142	2200	700	1540	351	3300	1900	4053	80	125	65	65	2-65	2-65	125	2-65	4440
ZF-12500	12500	13872	2400	700	1680	351	3460	2000	4215	80	125	65	65	2-65	2-65	125	2-65	5660
ZF-16000	16000	17766	2400	700	1680	351	4320	1700	5075	80	125	65	65	2-65	2-65	125	2-65	6800
ZF-20000	20000	22217	2600	700	1820	351	4620	1800	5375	80	125	65	65	2-65	2-65	125	2-65	8490
ZF-25000	25000	27790	2800	700	1960	351	4980	1900	5739	80	125	65	65	2-65	2-65	125	2-65	9830
ZF-30000	30000	33301	3000	700	2100	351	5230	2000	6001	80	125	65	65	2-65	2-65	125	2-65	11880
ZF-50000	50000	51605	3000	700	2100	351	7800	2000	8775	80	125	65	65	2-65	2-65	125	2-65	16800

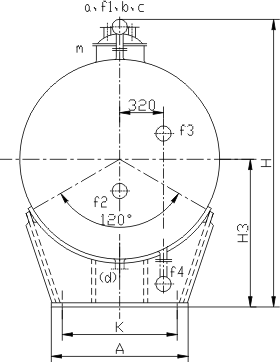

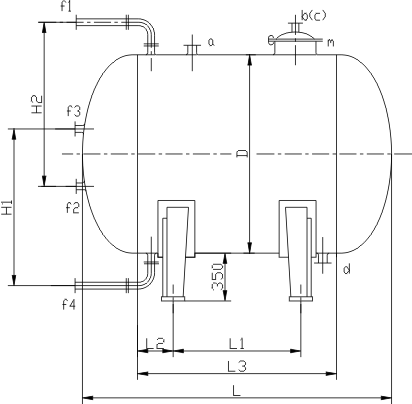

Type	L	L	Dimension(mm)											Nozzle(mm)						Weight kg
Type	L	L	D	H1	H2	H3	H	L1	L2	L3	L	A	K	a	b	c	d	f1-4	m	Weight kg
ZW-3000	3000	3337	1450	1100	1200	1089	2146	934	260	1454	2288	1300	1090	80	65	65	80	65	300 × 400	1732
ZW-4000	4000	4457	1450	1100	1200	1089	2146	1494	320	2134	2968	1300	1090	80	65	65	80	65	300 × 400	2076
ZW-5000	5000	5550	1600	1200	1200	1166	2300	1420	360	2140	3052	1430	1180	80	65	65	80	65	300 × 400	2510
ZW-6300	6300	7024	1750	1300	1300	1243	2454	1474	390	2254	3246	1560	1300	80	65	65	80	65	300 × 400	3200
ZW-8000	8000	8910	1900	1300	1400	1318	2604	1590	420	2430	3496	1690	1420	80	65	65	80	65	300 × 400	3730
ZW-10000	10000	11094	2000	1400	1400	1368	2704	1880	450	2780	3900	1780	1490	100	80	80	100	65	450	4740
ZW-12500	12500	13921	2000	1400	1400	1368	2704	2740	470	3680	4800	1780	1490	100	80	80	100	65	450	5640
ZW-16000	16000	17756	2200	1500	1500	1470	2908	2840	500	3840	5080	1950	1680	100	80	80	100	65	450	6700
ZW-20000	20000	22332	2400	1600	1600	1572	3112	2930	550	4030	5374	2130	1890	100	80	80	100	65	450	8420
ZW-30000	30000	33300	3000	1900	2000	1876	3720	2370	630	3630	5282	2650	2430	100	80	80	100	65	450	12700
ZW-50000	50000	51605	3000	1900	2000	1876	3720	4888	630	6148	7800	2650	2430	100	80	80	100	65	450	18308
