RE-5220
RE-5220
RE-5220 converting frequency adjustable speeding
Rotating-speed digital automatical lift
instroduction
RE-5220 New model descending style Rotary Evaporator to adapt Rotating Flask of big capacity and big calibration; it can increase evaporating area, to put it into water bath in decompression, over rotating over heating to diffuse effectively liquid to finish evaporation. It is used in consentration, drying, extraction, recycling. It is good device for big production.
characteristics:
● main machine: introducing advanced transmission system, the structure is reasonable to endure long time in warranty.
● control-temperature: introducing abroad advanced converting-frequency control system, temperature control system to ensure exaction of rotary evaporator
● Water Bath: choosing imported stainless board to make it, vertically automatical lift.
● Sealing: choosing the latest PTFE material to make it by special craft to enhance Sealing, Non-corrosion, high wearing feature.
● main structure: to adapt quality duralumin and stainless material.
|
Rotating Flask |
Capacity: 20L（20升）Flange calibration￠125mm |
|
Receiving Flask |
Capacity: 10L |
|
Rotating Speeding |
10-120rpm |
|
Rate of evaporation |
5L/h |
|
Motor: |
220V 125W |
|
Condenser |
3 triple |
|
Water bath |
stainless |
|
Water bath Temperature |
digital temperature range: 0~99℃ |
|
lift distance |
0-190mm |
|
Power supply |
~220v/50Hz |
|
Power |
5Kw |
|
Dimension(cm) |
85×52×160cm |

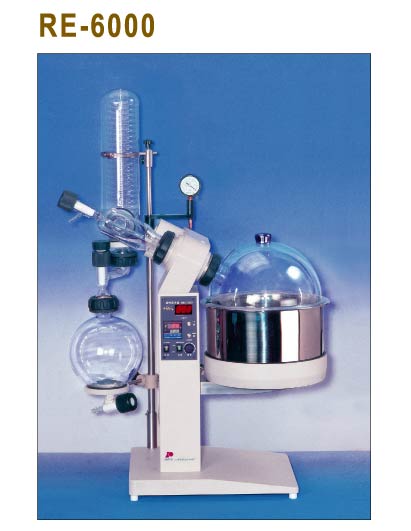

RE-6000
RE-6000
RE-6000 Temperature digital continuously receiving discharging
Introduction
RE-6000 Rotary Evaporator adapts Rotating Flask to increase Evaporating area, put it into heating bath in decompression to diffuse effectively liquid to finish evaporation, it is used in chemistry, Pharmacy, food industry, environmental protection industry as well as collage, institute,etc. it is ideal device for concentration, drying, recycling,etc.
Characteristics
● main machine introduced advanced transmission, the structure is reasonable to endure long time in warranty.
● introducing abroad advanced converting-frequency control system, temperature control system to ensure exaction of rotary evaporator
● automitical lift for water bath, no concussion
● choosing the latest PTFE material to make it by special craft to enhance Sealing, Non-corrosion, high wearing feature.
● the structure is simple to clean durty easily.
Parameters
|
Rotating Flask |
Capacity:6L |
|
Receiving Flask |
Capacity:3L |
|
Rotating Speed |
10-150rpm |
|
Lift Distance |
0-180mm for automatical lift |
|
Heating Bath |
Stainless, 1.8KW |
|
Temperature Controllor |
Intelligence-digital control for –400degree |
|
Power |
-220v/50Hz |
|
Dimension(cm) |
53×38×98cm |

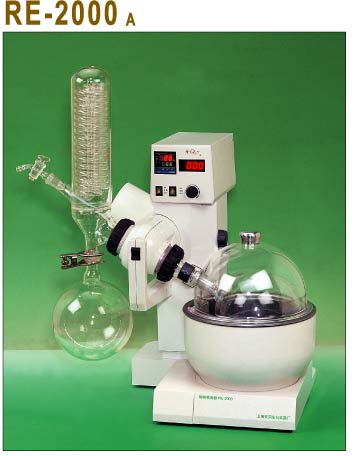

RE-2000A Digital control
RE-2000A
Characteristics
teflon Water bath, entire transparency protection mantle. Heat Preservation, save enegy, Non-explosive, non-spraying, non-corrosion, Non-pollution. Main parts are made of Non-corrosion duralumin, special engineering plastic, the structure is impact, the main body is quickly good. It life is very long.
Parameters
|
Main Machine |
to press button for lift(0-150mm) automatical |
|
Rotating Speed |
20-200rpm motor power:40w |
|
Heating Bath |
1.4Kw Teflon multiple bath and entire sealing, heating power:1.4KW |
|
Temperature Range |
digital control Max:90degree. |
|
Total Power |
1.5KW Voltage：~220V50Hz |
|
Condenser |
Vertical。 |
|
Charging Pipe |
The Valve Charging pipe connects with PTFE pipe |
|
Sealing Ring |
PTFE Sealing Ring. |
